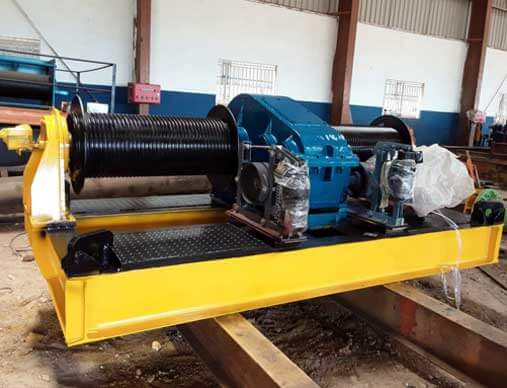

What Is An Electric Winch? Get To Know About Their Types And Working Principles

WHAT IS AN ELECTRIC WINCH?

Electric winch is a machine that manipulates heavy loads by pulling, hoisting or moving with the help of an electric motor. It operates through rotating a cable, rope or synthetic line around a rotating drum. Electric winches are popular in automobiles, construction work, maritime operations, warehouses, and rescue services where the pull force must be controlled. Electric winches are simple in operation compared to the manual or hydraulic winches and they also demand less human effort and provide uniform power.

MAIN COMPONENTS OF AN ELECTRIC WINCH

An electric winch consists of several key parts working together:

• Electric Motor: transforms electrical energy to mechanical motion.
• Drum: A cylindrical object which wraps the cable or rope.
• Cable or Rope: This is a type of rope or wire (steel or synthetic fibre), which is meant to haul the load.
• Gear System: Decelerates and raises torque when pulling heavy weight.
• Brake System: This helps to stop the load in the event of power failure.
• Control Switch or Remote: The operator can control the winch by the use of this.

Every single element has a significant role to play in the smooth and safe operations.

Each component plays a crucial role in ensuring smooth and safe functioning.

TYPES OF ELECTRIC WINCHES

Electric winches can be classified based on their design, application, and power source.

• Vehicle-Mounted Electric Winches: These winches are usually mounted on off road vehicles like jeeps, SUVs and trucks. They are also applied in self-recovery in case a vehicle becomes stuck in mud, sand or snow. These winches normally use the battery of the vehicle.
• Industrial Electric Winches: Industrial electric winches are found in factories, construction sites, and warehouses, and they serve to body heavy loads. They are constructed to run all the time and have increased load capacities and braking systems in a lot of cases.
• Marine Electric Winches: Marine winches are applied on boats and ships to anchor, moor and drag fishing nets. They have anti-corrosion properties and they are used in wet and salty conditions.
• Portable Electric Winches: Portable winches are small, light in weight and it is easy to transport and apply them to various areas. They are mostly applied in light duties like pulling small boats or loading equipment.

WORKING PRINCIPLE OF AN ELECTRIC WINCH

The working principle of an electric winch is based on converting electrical energy into mechanical pulling force.

The winch operates on electrical power linked to a battery or power source when the winch is turned on. The motor rotates and passes the motion to the gear system. This is accomplished by the gears that slow the motor but increase its torque enabling the winch to pull heavy loads.

This is a rotational movement that spins the drum, thus making the cable or the rope wrap around the drum. As cable is reeling, a tension is generated and this pulls the load in the direction of the winch. Once the operator releases the control switch the brake system automatically kicks in, keeping the load in place and it does not slip backwards.

This rotation can be reversed and so the cable unwinds when it is required. This is a motorised movement that makes the electric winches strong and accurate.

ADVANTAGES OF ELECTRIC WINCHES

Electric winches offer several benefits:

• Simple to use with little physical labour.
• Consistent pulling power
• Applicable in a broad variety of applications.
• Remote operation is possible to ensure safety.
• Less maintenance is required as compared to hydraulic winches.

These advantages make electric winches popular across many industries.

SAFETY CONSIDERATIONS

Electric winches are very effective, but safety is paramount. The operators are not to overload, inspect cables frequently and keep a distant distance when operating. Accidents should also be avoided by proper grounding and protection of electricity.

CONCLUSION

Electric winch is a very useful and powerful tool used to help pull or lift heavy loads easily. It provides good performance under different applications with the help of an electric motor, gear system, and controlled winding mechanism. Having various versions to suit all types of vehicles, industrial, marine, and mobile requirements, electric winch has become a very important gadget whenever one is dealing with heavy pulling jobs.
